Fixed and portable GNSS antennas

GNSS antennas for GPS, GALILEO, BEIDOU, and other constellations

Hero Image

GNSS antennas improve accuracy for stationary networks or while on the move

Full-wave GNSS antennas track existing and future signals, including GPS, Galileo, BeiDou, GLONASS, QZSS and L-band. Whether you need a fixed antenna for your reference network or infrastructure monitoring application, a machine-mounted antenna for construction or precision agriculture, or a pole-mounted campaign antenna for surveying work, all our antennas carry IP67 ratings for dust and water resistance.

Compare products

Find the right product for your applications.

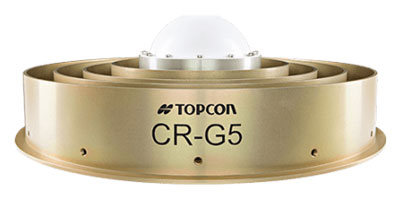

CR-G5

CR-G5

Ideal use

High-accuracy networking

Key features
  • TA-5 vertical convex dipole antenna element
  • Choke ring ground plane
  • A cavity filter option that provides additional mitigation for near-band jamming
Operating frequency lower band

1230±70 MHz
(L5, E5B, E3, L2, G2, E4, E6)

Operating frequency upper band

1565±50 MHz
(E2, L1, E1, G1, OmniStar, SBAS, CDGPS)

LNA gain

43 dB

Operating temperature

-50°C to +85°C

Dimensions

Antenna without anti-snow
Dome: 380 mm (D) x 155.5 mm (H)
Anti-snow Dome: 380 mm (D) x 292 mm (H)
SCIGN dome: 415 mm (D) x 287 mm (H)

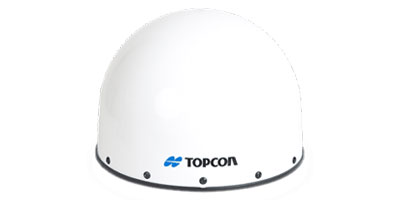

PN-A5

PN-A5

Ideal use

High-accuracy networking

Key features
  • TA-5 vertical convex dipole antenna element
  • Semi-hemispherical convex impedance ground plane
  • Minimum signal loss to the horizon
Operating frequency lower band

1230 MHz±70 MHz

Operating frequency upper band

1565 MHz±50 MHz

LNA gain

43 dB

Operating temperature

-50°C to +85°C

Dimensions

Antenna: D: 15” (380 mm) H: 10.3” (262 mm)
Dome: D: 15” (380 mm) H: 11.5” (292 mm)
SCIGN dome: D: 16.3” (415 mm) H: 11.3” (287 mm)

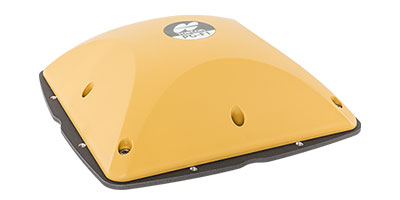

PG-F1

PG-F1

Ideal use

Surveying and construction

Key features
  • Detachable ground plane for additional portability
  • Rugged, lightweight
  • Pairs with Topcon modular and handheld GNSS receivers for typical rover field work
Operating frequency lower band

1230 ± 70 MHz
(L5, E5A, E5B, E3, L2, G2, E4, E6)

Operating frequency upper band

1565 ± 50 MHz
(E2, L1, E1, G1, SBAS)

LNA gain

35 dB

Operating temperature

-50°C to +85°C

Dimensions

141.6 x 67.3 x 141.6 mm

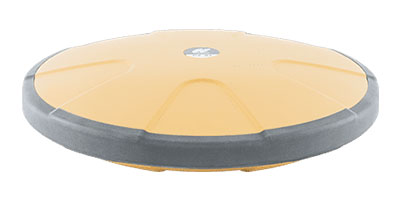

G5-A1

G5-A1

Ideal use

Budget-sensitive base receivers, geodetic campaigns

Key features
  • Portable geodetic antenna
  • Multipath reduction
  • Economical all-in-view signal tracking
Operating frequency lower band

1230±70 MHz
(E5a, L5, E5b, G3, B2, E3, L2, G2, E4, B3, E6)

Operating frequency upper band

1570±40 MHz
(E2, B1, L1, B1-2, E1, G1, SBAS)

LNA gain

35 dB

Operating temperature

-40°C to +85°C

Dimensions

298 x 75 mm
