- Designed for dairies, feedlots, FFA Chapters, and 4-H Clubs
- Offers portability between multiple weighing locations (Transport weight withload cells is 106 lbs.)
- 1” perforated surface designed to reduce slippage and self-clean
- 3,300 lb capacity
Explore our complete systems and comprising components to find the right fit for your operation. Please contact us for ordering information.

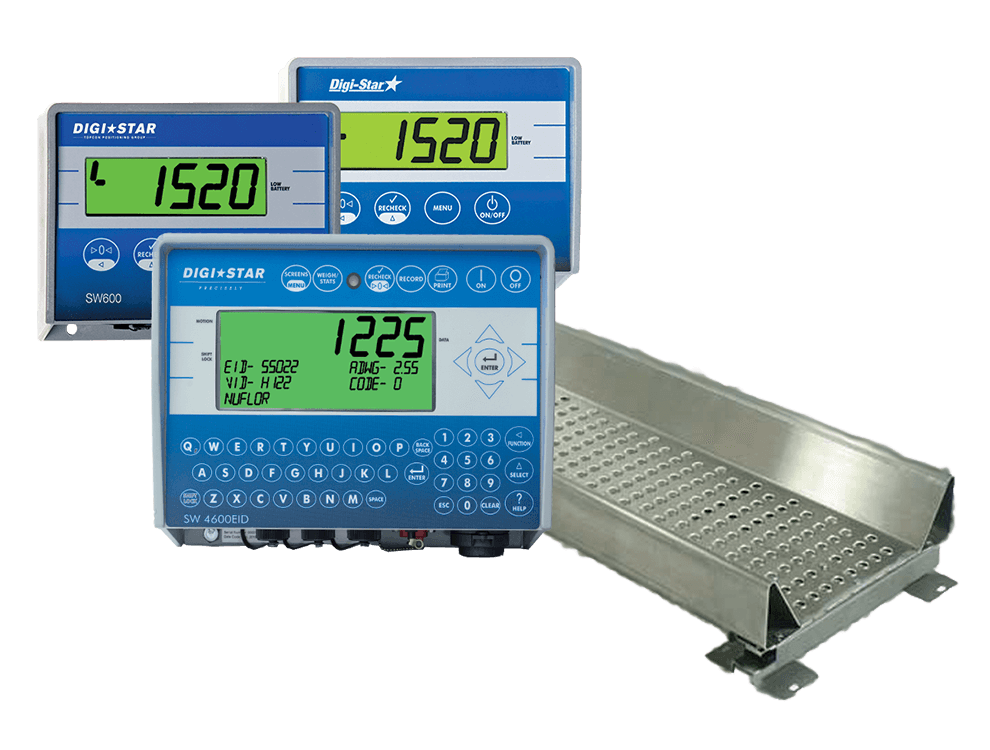

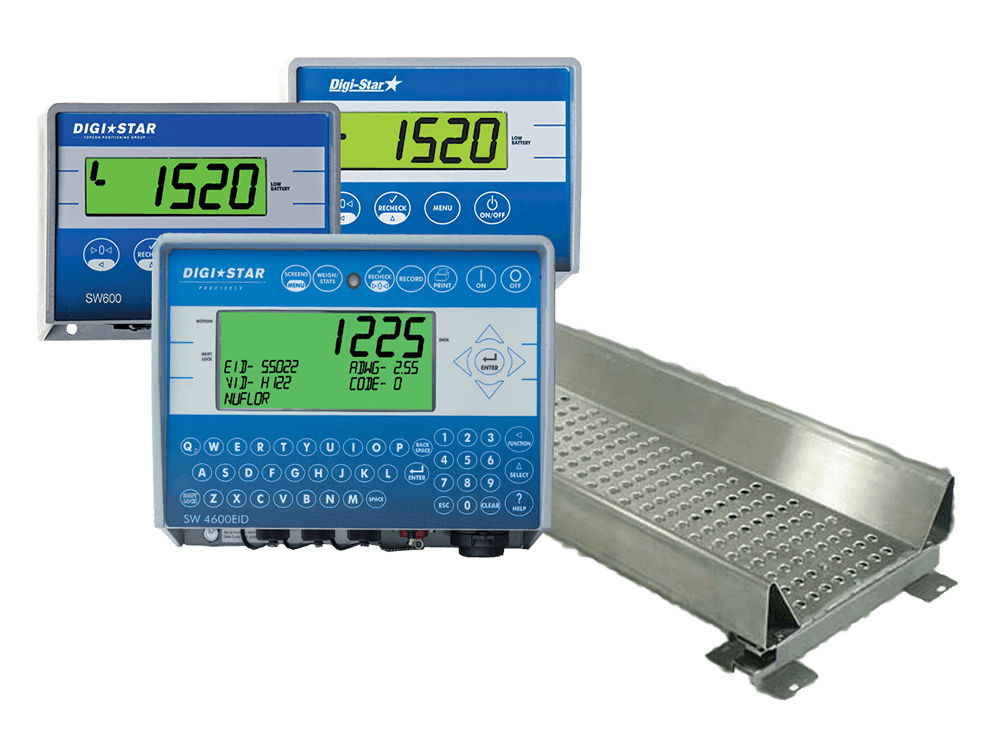

Alleyway Scale System
Kit Overview
- Three indicator options
- Digi-Star SW 300
- Digi-Star SW 600
- Digi-Star 4600EID
- 24” W x 90” L aluminum platform
- Two SW 3300-24” load cells

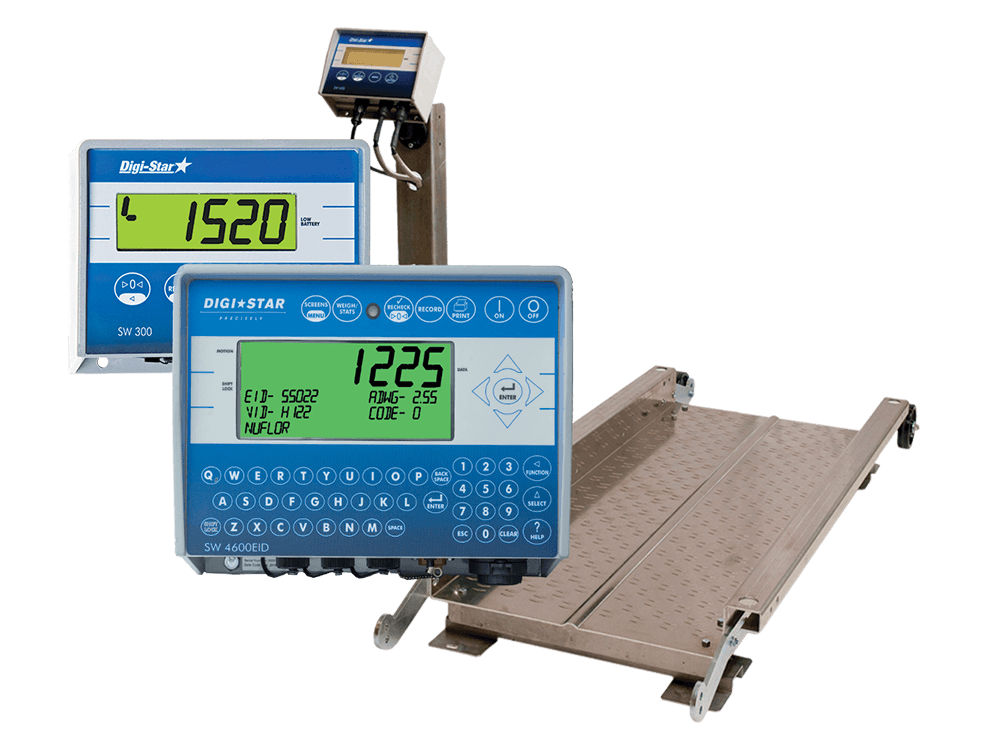

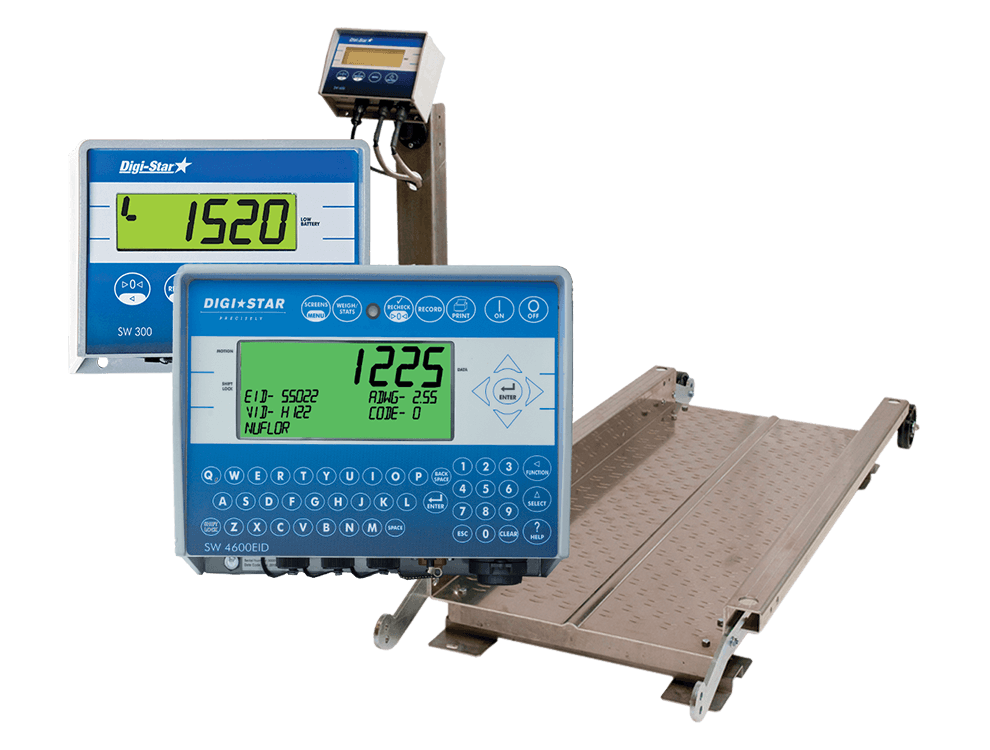

Wrangler Scale System
- Designed for hogs, sheep, and other small animals
- Offers portability between multiple weighing locations (Transport weight with load cells is 96 lbs.). Wheel and handle assembly available.
- Fold down display support
- 700 lb capacity
Kit Overview
- Two indicator options
- Digi-Star SW 300
- Digi-Star 4600EID
- 28.5” W x 54” L aluminum platform
- Two SW 3300-24” load cells

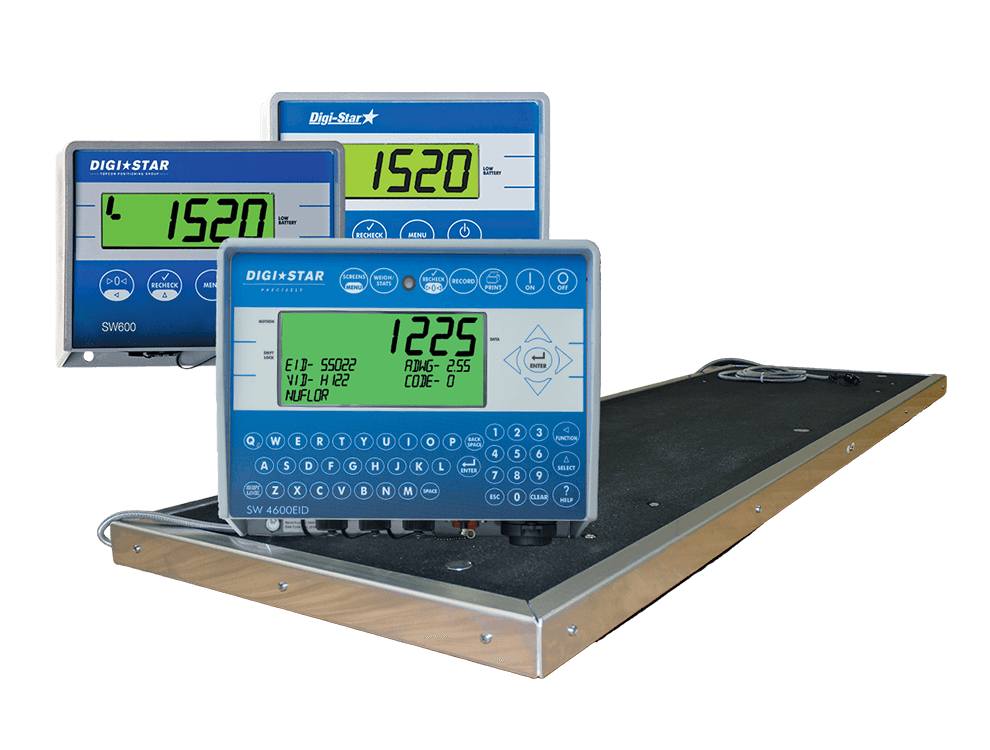

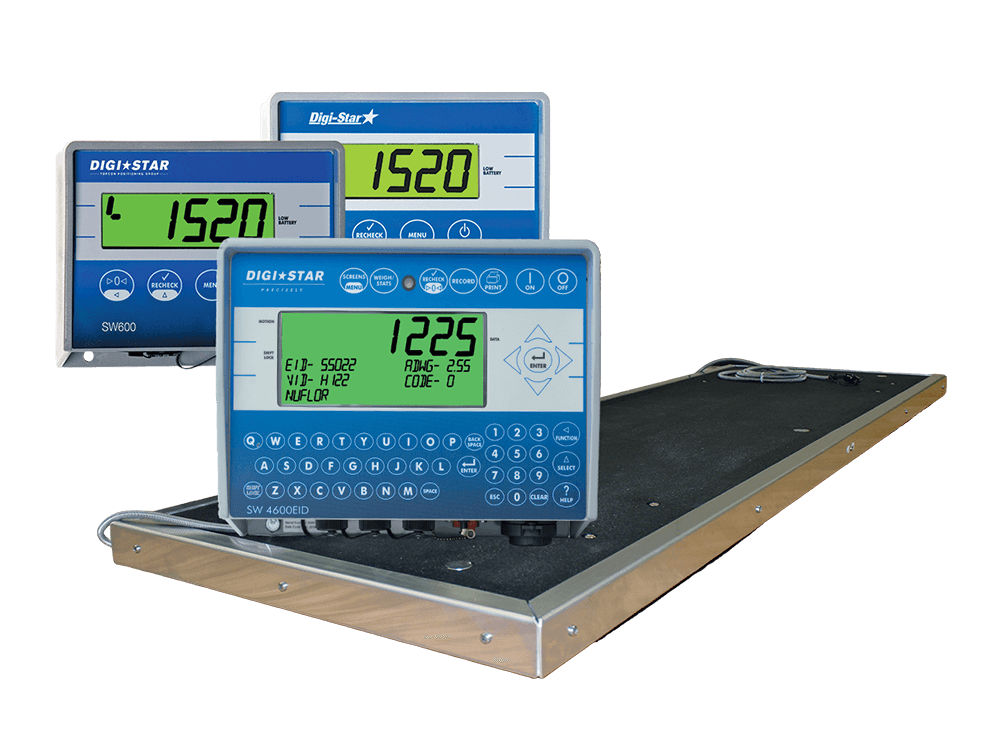

Low Profile Scale System
- Designed for dairies and feedlots
- Fits in standard alleyways and chutes
- High traction rubber matting that reduces noise and animal stress
Kit Overview
- Three indicator options
- Digi-Star SW 300
- Digi-Star SW 600
- Digi-Star 4600EID
- 29” W x 94” L aluminum platform with
- rubber matting
- Two load cell configuration options
- Two SW 3300 load cells
- Two SW 6600 load cells

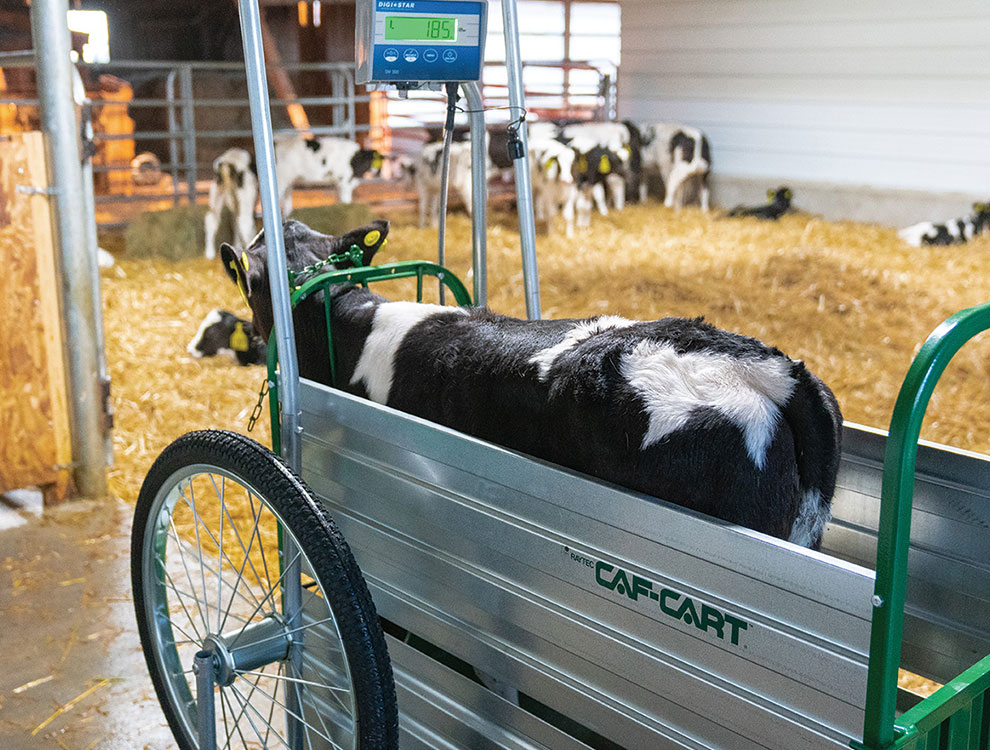

Calf Cart Scale System
- Designed for dairies and feedlots
- Portability between multiple weighing locations. Cart is the ideal size to weigh and transport newborns.
- Diamond plate aluminum platform for biosecurity and safety
- Headlock feature securing animals for medicine, dehorning and vaccination
- 3,3000 lb capabity
Kit Overview
- Digi-Star SW 300 indicator
- 15” W x 38” H x 41” L diamond plate aluminum platform (Raytec Caf Cart)
- Two SW 3300-24” load cells

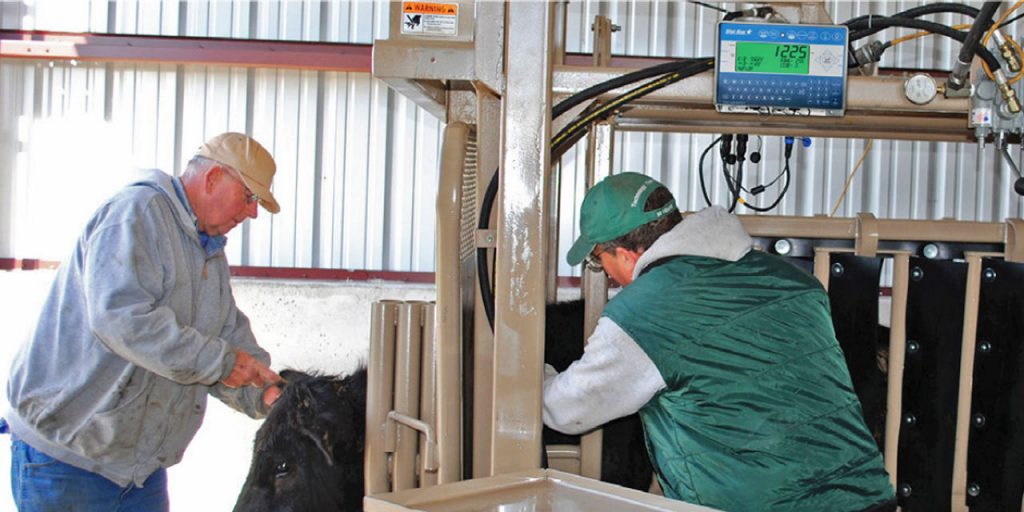

Squeeze Chute Scale Systems
- Designed for dairies and feedlots
- Wide range load cell options to easily integrate into any squeeze chute
Kit Overview
- Two indicator options
- Digi-Star SW 600
- Digi-Star 4600EID
- Two load cell/weigh beam options
- ChuteMaster HD7000 (7,000 lb. gross capacity)
- ChuteMaster 10,000 / 14,000 (10,000 lb. and 14,000 lb. gross capacity)

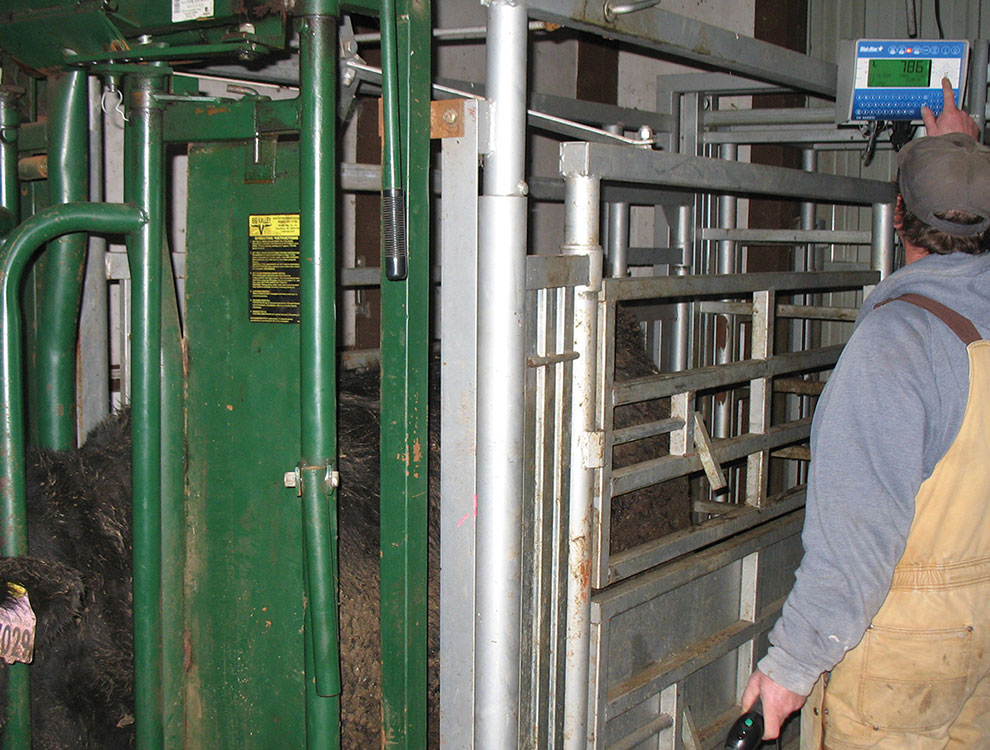

Group Pen Scale Systems
- Designed for dairies and feedlots
- Wide range load cell options to easily integrate into any group pen
Kit Overview
- Two indicator options
- Digi-Star SW 600
- Digi-Star 4600EID
- Two load cell/weigh beam options
- ChuteMaster 10,000 / 14,000 (10,000 lb. and 14,000 lb. gross capacity)
- Heavy Duty 25,000 and 50,000 lb. platform scale mount system (25,000 lb. and 50,000 lb. gross capacity)
What’s the right indicator for your operation?
Digi-Star SW 300 Indicator
Basic animal weighing solution offering a compact and durable design with the convenience of an internal battery for mobility.
Display
Backlit LCD single line display (1”)
Functionality
- General, slow, fast, lock-on weigh methods
- Auto shut off, and conservation settings
- 6 character display
- Powered by (2) ‘AA’ battery, 50+ hrs life, also 120V power convertor
- 3 mount bracket options included, 2 load cell connections

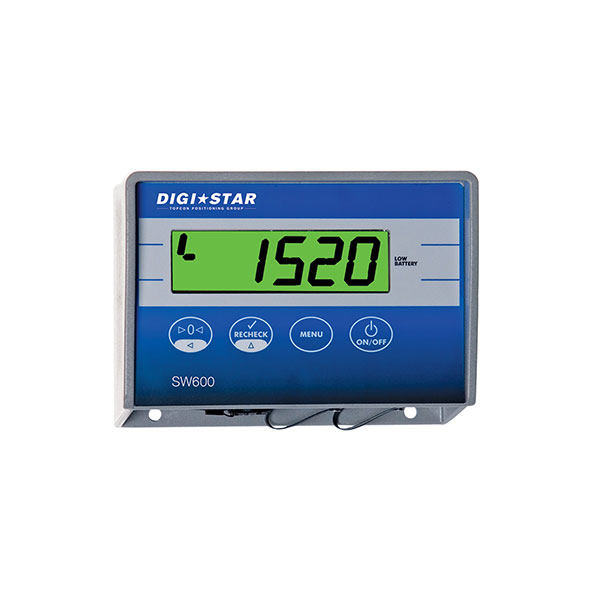

Digi-Star SW 600 Indicator
Basic animal weighing solution for larger animals offering a durable design and the ability to export data to a printer or 3rd party software programs.
Display
Backlit LCD single line display (1”)
Functionality
- General, slow, fast, lock-on weigh methods
- Multiple pre-programmed print formats
- 6 character display
- AC/DC power convertor, 12V battery clips
- One DB9 serial connector
- 3 mount bracket options included, 2 load cell connections

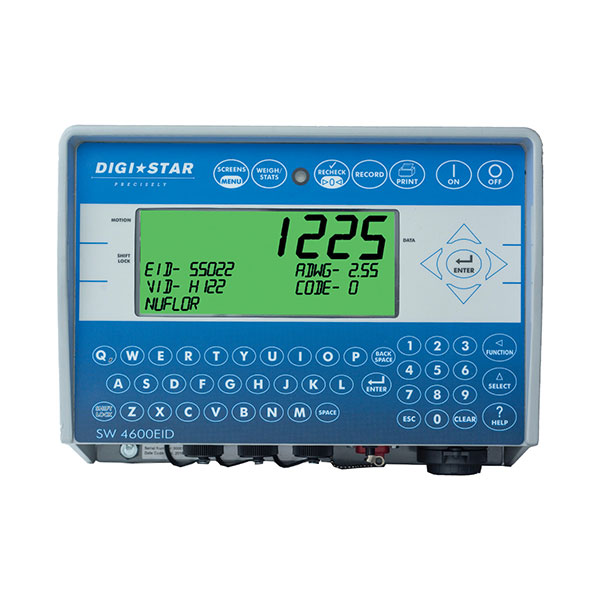

Digi-Star SW 4600EID Indicator
Advanced animal weighing solution offering a durable design, EID and visual ID input, display customization, and data collection including associated software.
Display
Backlit LCD quad line display (1.7")
Functionality
- General, slow, fast, lock-on weigh methods
- Automatic recording of animal weight and EID tag, and displays average daily weight gain
- Create group file name, enter premise, visual ID, and meeting notes (2 note fields)
- Displays group weigh statistics, including head count, avg, high, low, weight sum
- Stores up to 10,000 records
- USB and 2-way communication functionality
- Compatible with all brands of EID wand readers

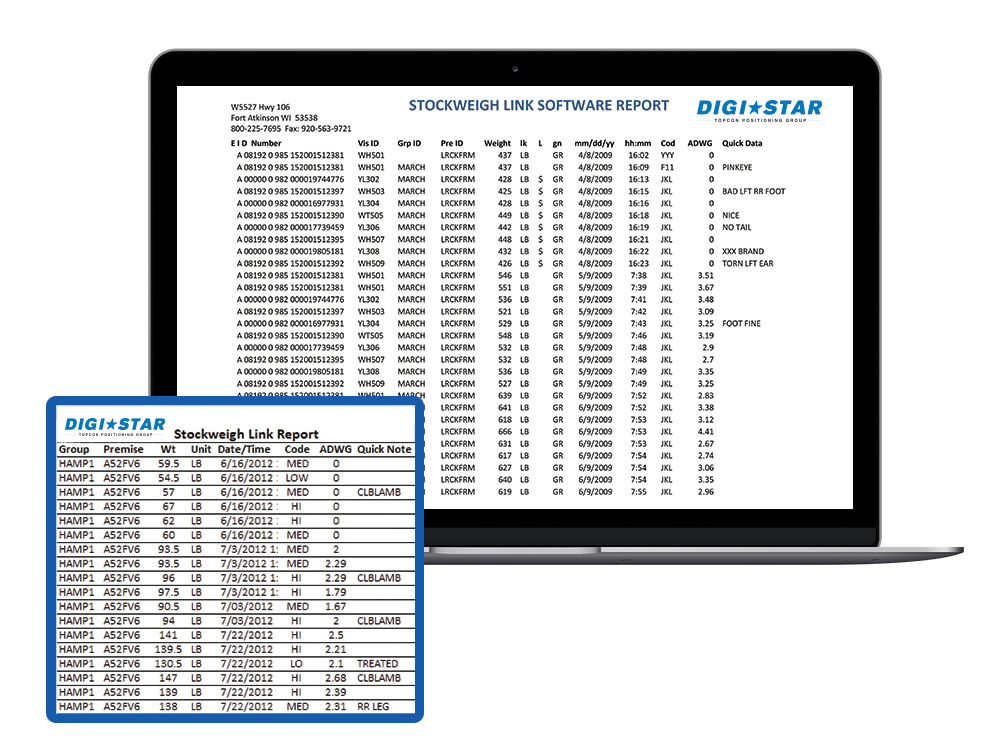

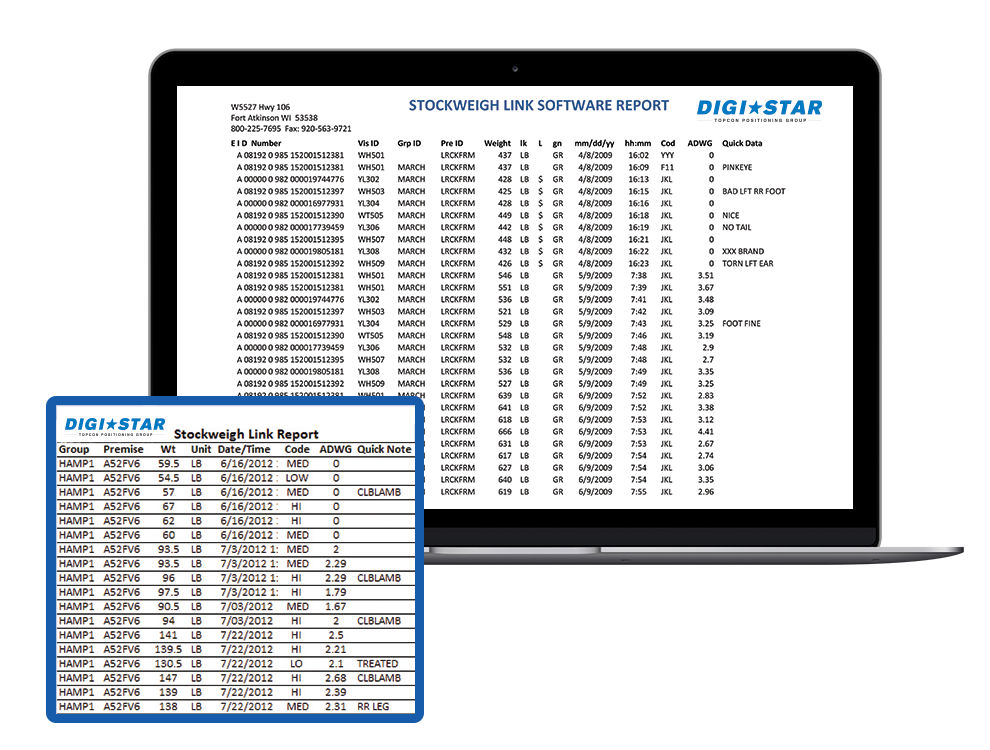

- StockWeigh Link (PC Software) offering easy export of data files (CSV format)
- Two DB9 serial ports for wand reader and computer interface, or printer
- AC/DC power converter, 12V battery clips
- 3 mount bracket options included, 2 load cell connections
Load Cells and Weigh Beams
Load cells are an integral component of any weighing system. Please contact us to understand what’s right for your operation.
SW 3300
Overview
- Lengths: 16”, 24”, and 33.5”
- Gross Capacity: 1,650 lb./weigh beam, 3,300 lb./pair
SW 6600
Overview
- Lengths: 33.5” and 44”
- Gross Capacity: 3,300 lb./weigh beam, 6,600 lb./pair
ChuteMaster HD7000
Overview
- Lengths: 34” and 40”
- Gross Capacity: 3,500 lb./weigh beam, 7,000 lb./pair
- Powder coated 7GA channel
ChuteMaster 10,000 / 14,000
Overview
- Gross Capacity: 10,000 lb. and 14,000 lb.
- 10,000 lb. capacity designed for high-use manual chutes and hydraulic chutes
- 14,000 lb. capacity designed for heavy hydraulic chutes, feedlot applications and group scales

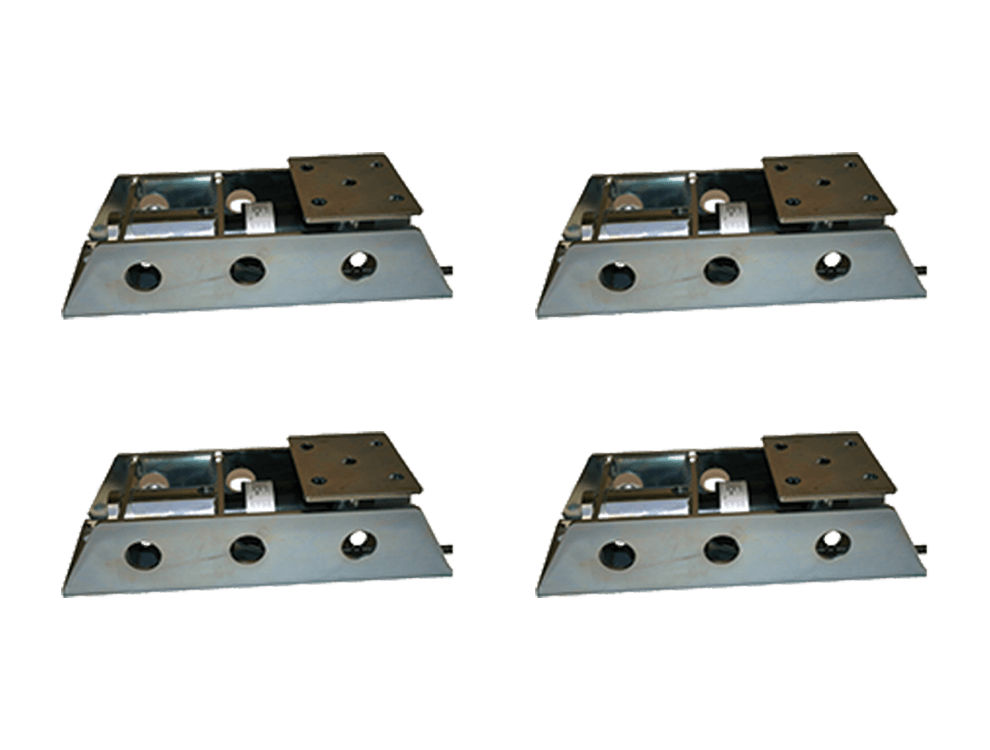

Heavy Duty 25,000 / 50,000
Overview
- Gross Capacity: 25,000 lb. and 50,000 lb.
- Designed for group weighing platforms
