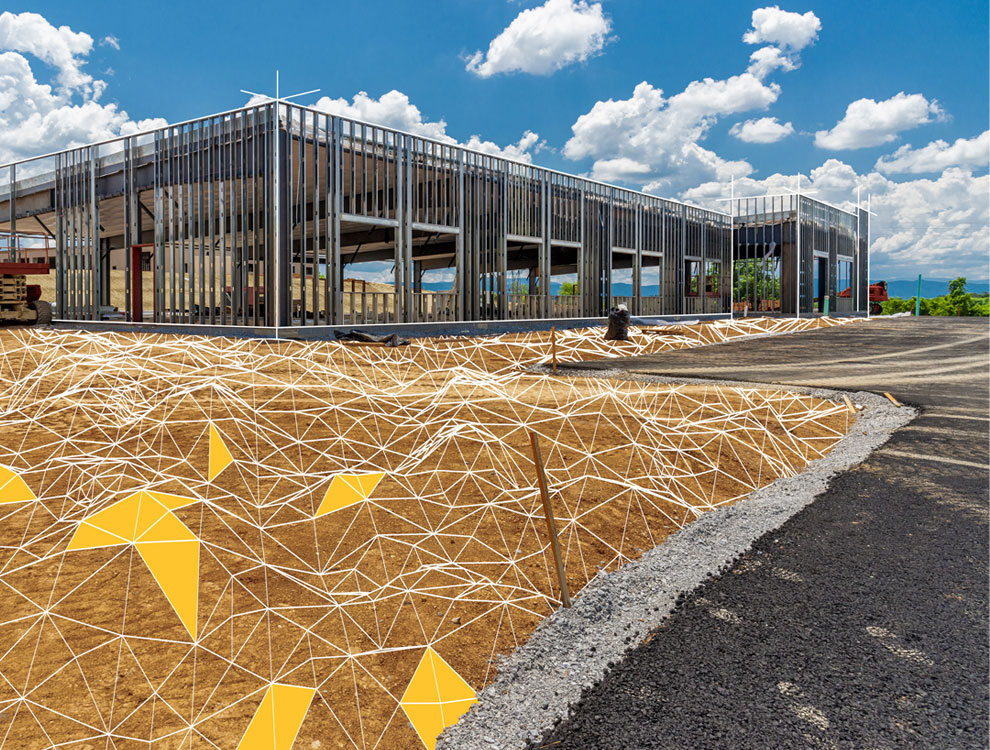

Constructible digital terrain models
MAGNET Office’s base software lets you combine plans and survey data to build 3D digital-terrain models for site survey and machine control. A common file can be directly shared between machine operators, GPS instruments, grade checkers and project stakeholders for a better-connected project team.
MAGNET Office functionality
MAGNET Office
Prep job files for machine control and grade management
Key uses
Sitelink3D and MAGNET Enterprise connectivity
Machine control data prep
Layout data prep
Road and site design
Corridor design
2D PDF to 3D job file
Take off and material quantities
Paving resurfacing design
Finished Survey CAD deliverables
MAGNET Tools GNSS/optical processing
+Site Prep Module
Add advanced road, site and resurfacing design tools
Key uses
Sitelink3D and MAGNET Enterprise connectivity
Machine control data prep
Layout data prep
Road and site design
Corridor design
2D PDF to 3D job file
Take off and material quantities
Paving resurfacing design
Finished Survey CAD deliverables
MAGNET Tools GNSS/optical processing

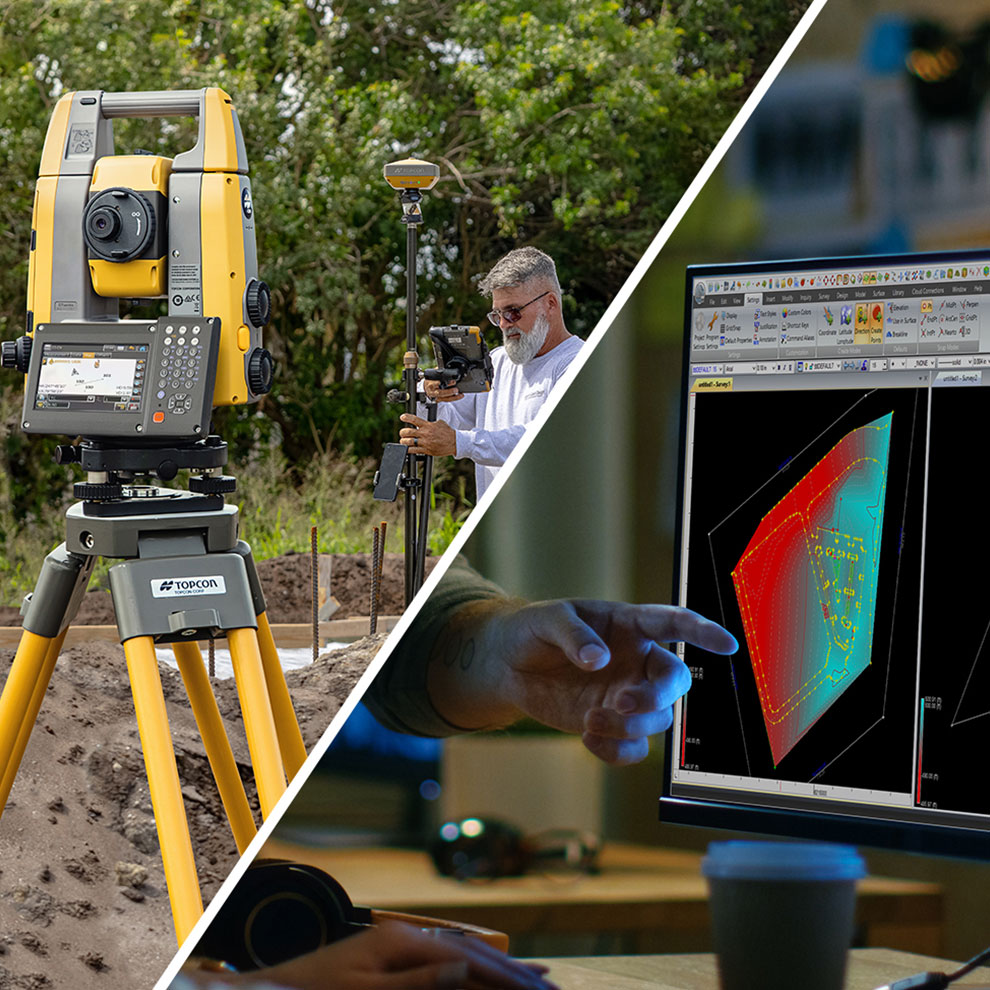

+Survey Module
Add finished CAD deliverables and data processing for surveyors
Key uses
Sitelink3D and MAGNET Enterprise connectivity
Machine control data prep
Layout data prep
Road and site design
Corridor design
2D PDF to 3D job file
Take off and material quantities
Paving resurfacing design
Finished Survey CAD deliverables
MAGNET Tools GNSS/optical processing
“The data and the workflow is more efficient… machine control 3D modelling with MAGNET Office helps us catch mistakes before they become mistakes.”
- Steven Baxter, Co-Owner, Accurate GPS Modeling
