Use total stations for earthmoving, milling and paving

Accurate positioning when satellites aren’t an option

Hero Image

LPS is total station-based machine control

When a higher-accuracy solution is required, or satellite access is prevented by heavy tree cover, buildings, tunnels, or other jobsite structures, LPS (Local Positioning Systems) can use total stations to provide precise location and height information.

Robotic total stations with 360-degree prisms mounted to your machine provide millimetre-level positional accuracy needed for applications such as:

  • Excavators
  • Bulldozers
  • Motor Graders
  • Cold milling machines
  • Asphalt pavers
  • Concrete pavers
  • Curb and gutter machines
  • Compact track loaders

Topcon machine control systems allow you to switch back and forth from GPS to LPS modes as satellites become a viable option again. Making the switch is as easy as swapping the prism for the GNSS antenna. The rest of the components continue to operate in their mounted locations.

Earthmoving / Milling / Paving LPS Application

Find the right station for your applications.

Earthmoving / Milling / Paving LPS Application

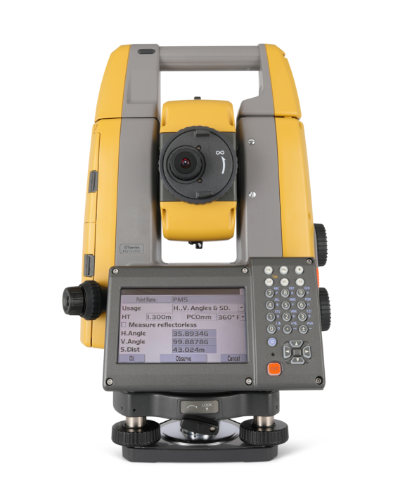

GT-Series

GT-Series

Recommended Applications

Excavating, fine grading, milling, asphalt and concrete paving

Angle Accuracy

1", 2", 3"

Recommended range for earthworks (radius in m/ft)

300/1000

Recommended range for paving/milling (radius in m/ft)

100/300

Highlights

High turning
 speed

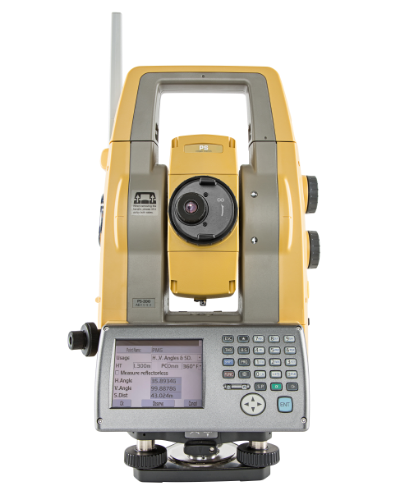

PS-200

PS-200

Recommended Applications

Excavating, fine grading, milling, asphalt and concrete paving

Angle Accuracy

1", 3"

Recommended range for earthworks (radius in m/ft)

300/1000

Recommended range for paving/milling (radius in m/ft)

100/300

Highlights

LPS-setup preinstalled
and included

LN-150

LN-150

Recommended Applications

Excavating, curber, fine
grading for smaller projects

Angle Accuracy

5"

Recommended range for earthworks (radius in m/ft)

130/400

Recommended range for paving/milling (radius in m/ft)

80/260

Highlights

Self-levelling
Laser Class 1
