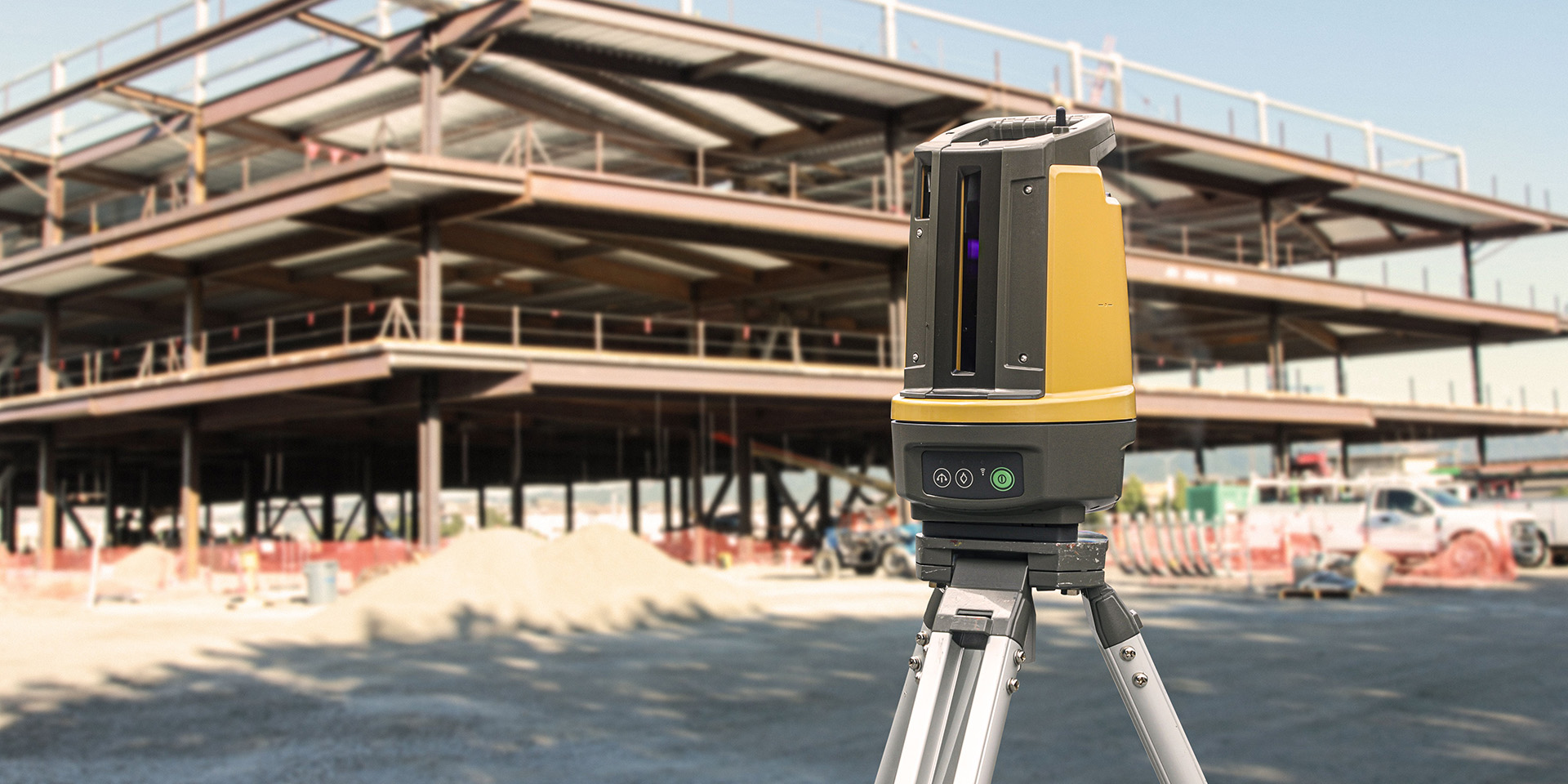

LN-150

One-touch, easy layout tool

User-friendly solution for layout and navigation on any site

Hero Image

Productinformatie

Layout reinvented

The LN-150 takes you from paper plans and tape measures into digital layout and construction verification workflows. This tool is easy to learn and easy to use, letting you automate and execute layout and construction verification processes for increased productivity, accuracy, and bottom-line savings.

  • Simple upgrade for machine guidance
  • Easy one-button, self-leveling setup
  • Wi-Fi and long-range Bluetooth® instrument communication options
  • Seamless cloud-connected workflows with Autodesk, Bentley, and MAGNET
  • Easy to use with MAGNET or Pocket3D software

Jobsite-ready

With more than 80 years of optical technology innovation behind it, Topcon’s LN-150 layout navigator was engineered for contractors’ specific indoor/outdoor positioning needs.

The layout navigator automatically locks onto the prism for real-time positioning on the go. Built to perform on any project that demands confident, precise 3D positioning at up to a 130m working radius, the LN-150 is a uniquely user-friendly solution for your positioning needs.

Easy data workflows

The LN-150 is optimized for use with MAGNET field, cloud, and office software and includes seamlessly integrated workflows with popular design software, including:

  • Autodesk’s Revit, Navisworks, AutoCAD Civil3D, and BIM 360
  • Bentley's ProjectWise and OpenRoads

Field control with MAGNET Construct covers basic layout and verification applications, while MAGNET Field can be used for more advanced applications such as setting jobsite control.


LN-150 Ideaal Voor:

    Vergelijk met soortgelijke producten:

    Specificaties

    LN-150 Specificaties

    Hoekmetingen

    Horizontal Angle

    Vertical Angle


    360°

    +55° to -30°


    Afstandmeting

    Prism Tracking Range

    Nauwkeurigheid

    130m

    ±3mm

    Auto Level

    Leveling Range


    6°


    Tegelhoekcompensatie

    Compensatie

    12'

    Communicatie

    Wi-Fi


    802.11 b/g/n


    Fysieke en omgevingskenmerken

    Afmetingen

    Bescherming tegen stof en water

    Bedrijfstemperatuur

    Laser Plummet

    185 x 198 x 332 mm

    IP65


    -20°C to 50°C

    Yes
